Clip-In
- Concealed grid and a continuous ceiling appearance.
- Uses Spring Tee suspension.
- Downward access.
- Perforated and non-perforated options.
- Normal and bevelled corner options.
- Pre-painted, washable finish.
Clip-In or Lay-In
Each tile system is paired with its own grid so the two work together.

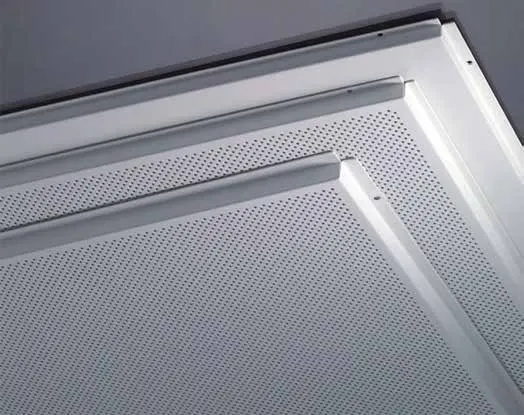

Lay-In
- Tiles supported by main and cross tees.
- Lift-out access for maintenance.
- Replaceable tiles.
- Perforated and non-perforated options.
- Normal and bevelled corner options.
- Pre-painted, washable finish.
Compatible Grids
Concealed grids carry clip-in tiles. Exposed tee grids carry lay-in tiles.
Concealed grid, for clip-in tiles
Exposed grid, for lay-in tiles
Finish and Colour
Tiles and grids are manufactured in RAL 9003 as standard. On request they can be made in RAL 9010 or RAL 9016, or to a client-specified RAL colour.
- Standard finish
- RAL 9003 Signal White, 12% gloss
- Top coating
- 5 micron primer + 20 micron PE
- Top colour
- RAL 9003 polyester
- Back coating
- 5 to 7 micron
- Other colours
- RAL 9010 and RAL 9016 on request, or a client-specified RAL
Tiles are made from pre-painted galvanised iron (PPGI) or aluminium (PPAL) coil. Thickness and sizes vary with client requirements. Tiles can also be post-painted to a specified RAL colour.

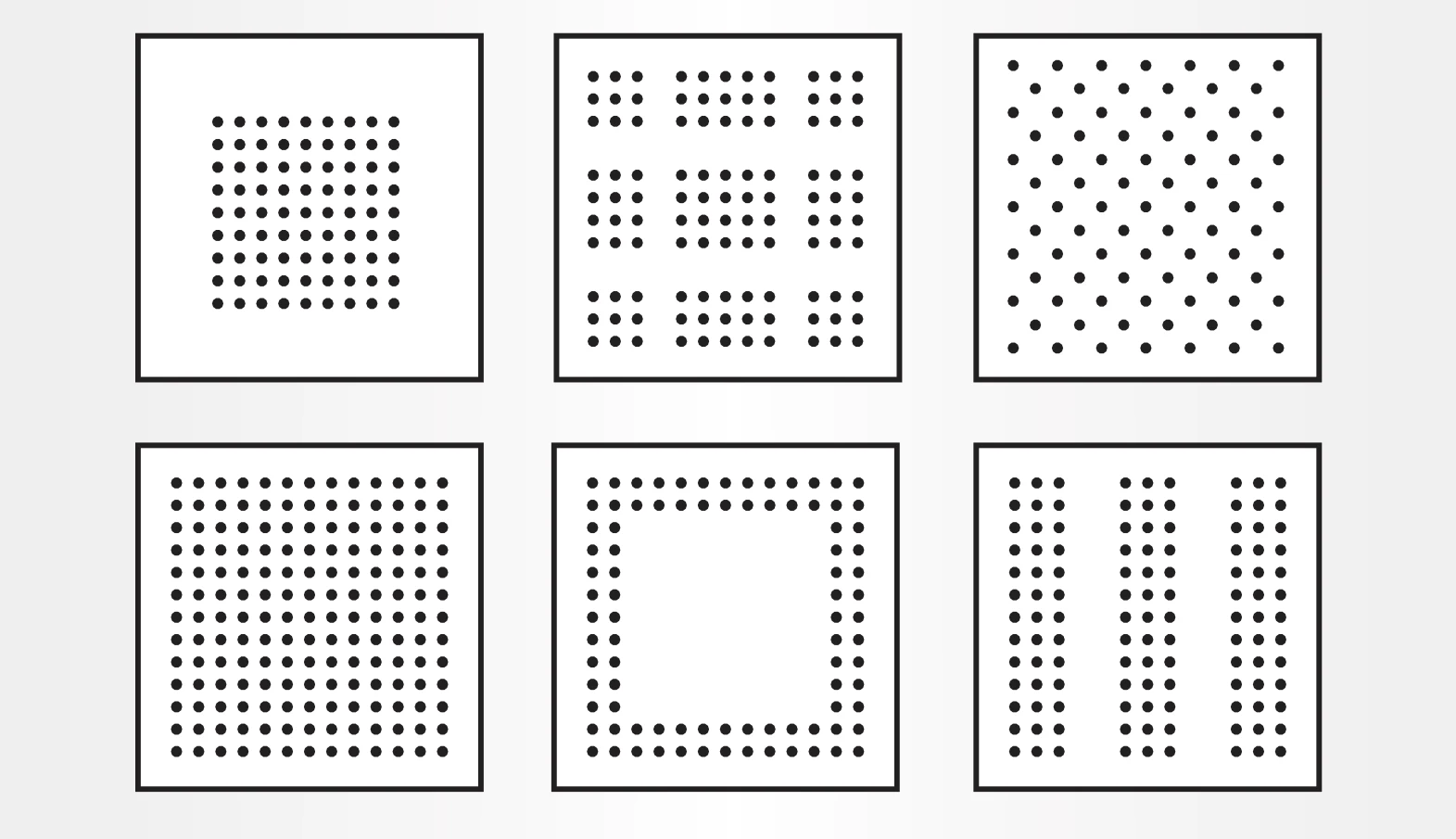

Perforation
All tiles are offered plain or perforated, with 1.8mm perforations. On request, perforated tiles can have different plain borders, and special perforated designs can be supplied. Perforated tiles can include a non-woven sound-absorbing inlay.
Installation and Care
Guidance from the FERREX catalogues that applies across the aluminium ceiling systems range.
Care and maintenance

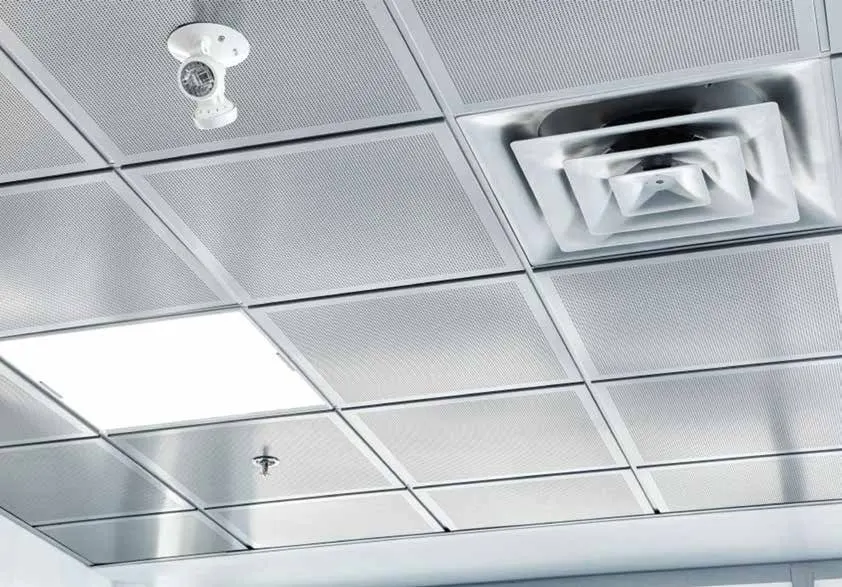

- Field cutting: tiles can be cut on site for light fittings, ventilation grilles and firefighting equipment. Cutting should be done by experienced installers with suitable tools, taking care not to damage surrounding tiles.
- Cleaning: wipe dust off with a cloth. Remove grease and other stains with a light cleaner. Avoid heavy abrasive cleaners.
- Storage: store all ceiling components in a dry place and handle cartons with care to avoid damage.
- Access: tiles can be removed and fixtures added without special tools.
Standards
Material and manufacturing standards as listed in the FERREX catalogues, including superseded editions where the catalogue names them. They describe the listed products, not a current certification. Request current test and compliance documents for your specification.
Metal ceiling tiles and grids
Ceiling Tiles, page 6 (PDF, opens in a new tab)- Manufacturing
- EN 13964, as stated in the ceiling-tiles catalogue
- Spring tee and concealed main channel
- ASTM A653/A653M; BS EN 10346:2009; coating Z275
- Aluminium edge trim
- ASTM B209M; EN 485-4:1993; pre-coated
Other Product Categories
Need a Size That Is Not Listed?
Other sizes are available on request across the range. Send references, dimensions and quantities for aluminium ceiling systems.
