- Sizes
- 600 × 600, 600 × 1200 mm
- Grid
- Spring Tee, concealed
- Access
- Downward
- Standard finish
- RAL 9003
Overview

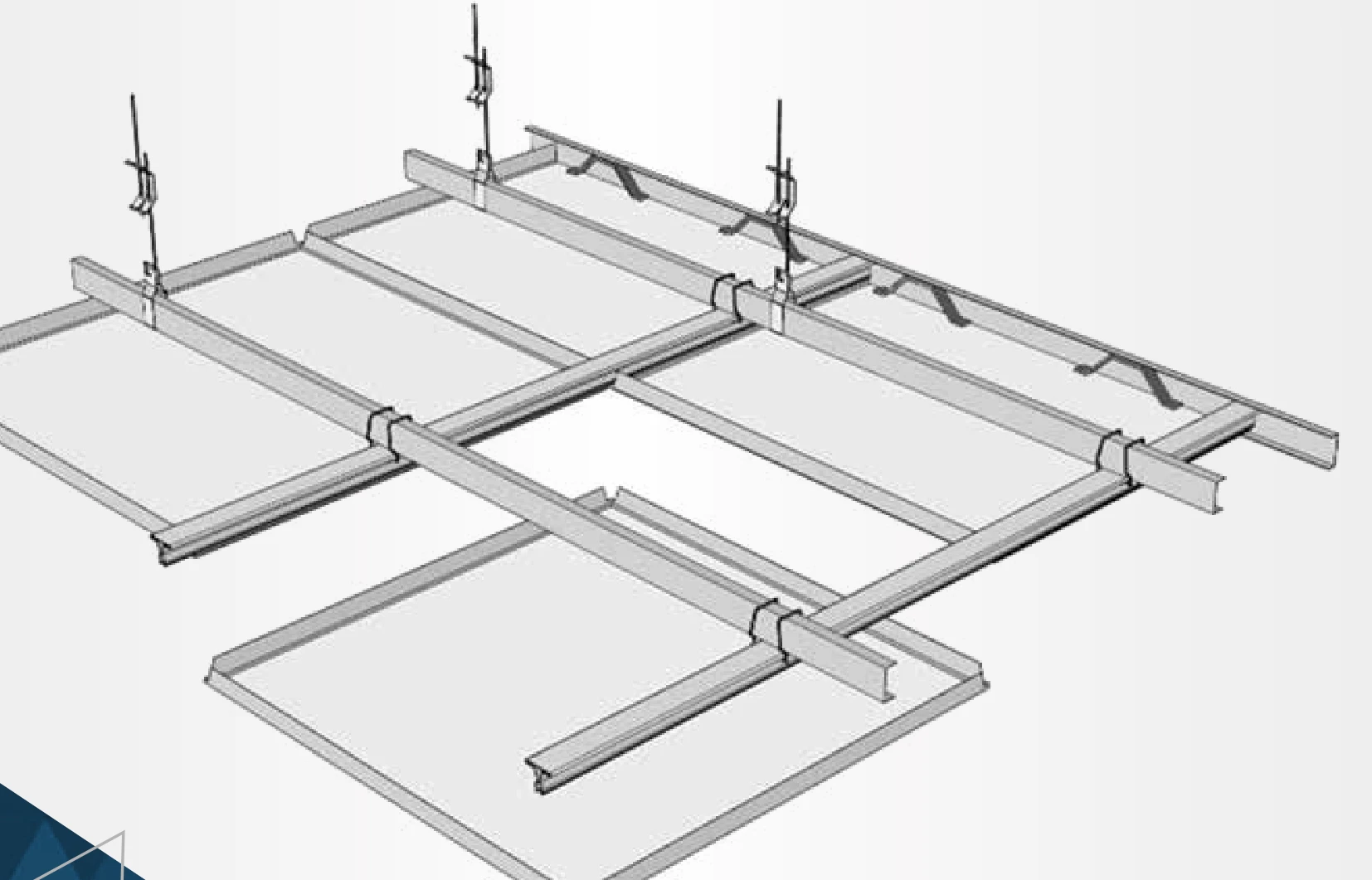

Clip-in tiles give a smooth, uninterrupted ceiling with the grid hidden from view. They are paired with Spring Tee grid systems to achieve a uniform finish.

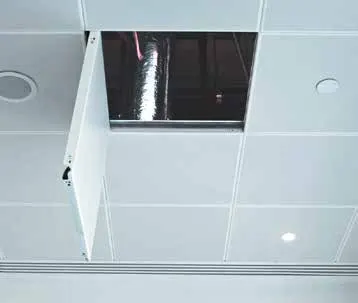

Clip-in tiles need little clearance from the structure above and give quick downward access to flush access doors.
ApplicationContinuous ceilings where the grid should not be visible.
- Concealed grid and a continuous ceiling appearance.
- Uses Spring Tee suspension.
- Downward access.

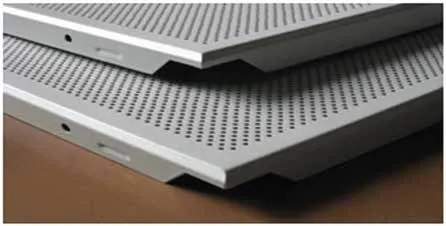

- Perforated and non-perforated options.
- Normal and bevelled corner options.
- Pre-painted, washable finish.
- Lightweight and easy to handle.
- Straightforward on-site cut-outs for lights, firefighting equipment and grilles.
Specifications
| Reference | Dimensions (mm) | Thickness (mm) | Material | Qty per box | |
|---|---|---|---|---|---|
| A | B | ||||
| FCA 6 | 600 | 600 | 0.50 to 1.20 | Aluminium | 22 |
| FCA 12 | 600 | 1200 | 0.50 to 1.20 | Aluminium | 22 |
| FCAP 6 | 600 | 600 | 0.50, 0.60, 0.70 | Aluminium, perforated | 22 |
| FCAP 12 | 600 | 1200 | 0.50, 0.60, 0.70 | Aluminium, perforated | 22 |
| FCG 6 | 600 | 600 | 0.40, 0.45, 0.50 | Galvanised iron | 22 |
| FCG 12 | 600 | 1200 | 0.40, 0.45, 0.50 | Galvanised iron | 22 |
Source: Ceiling Tiles catalogue, page 8 (PDF, opens in a new tab), Ceiling Tiles catalogue, page 9 (PDF, opens in a new tab), Ceiling Tiles catalogue, page 16 (PDF, opens in a new tab)
Installation
Materials and standards
- Standard finish
- RAL 9003 Signal White, 12% gloss
- Top coating
- 5 micron primer + 20 micron PE
- Top colour
- RAL 9003 polyester
- Back coating
- 5 to 7 micron
- Other colours
- RAL 9010 and RAL 9016 on request, or a client-specified RAL
Standards are shown as listed in the FERREX catalogues. Request current test and compliance documents for your specification.
Available variants
- Surface
- Plain or perforated
- Corner
- Normal or bevelled
- Size
- 600 × 600 mm or 600 × 1200 mm
Drawings and images
Downloads
Ceiling Tiles
