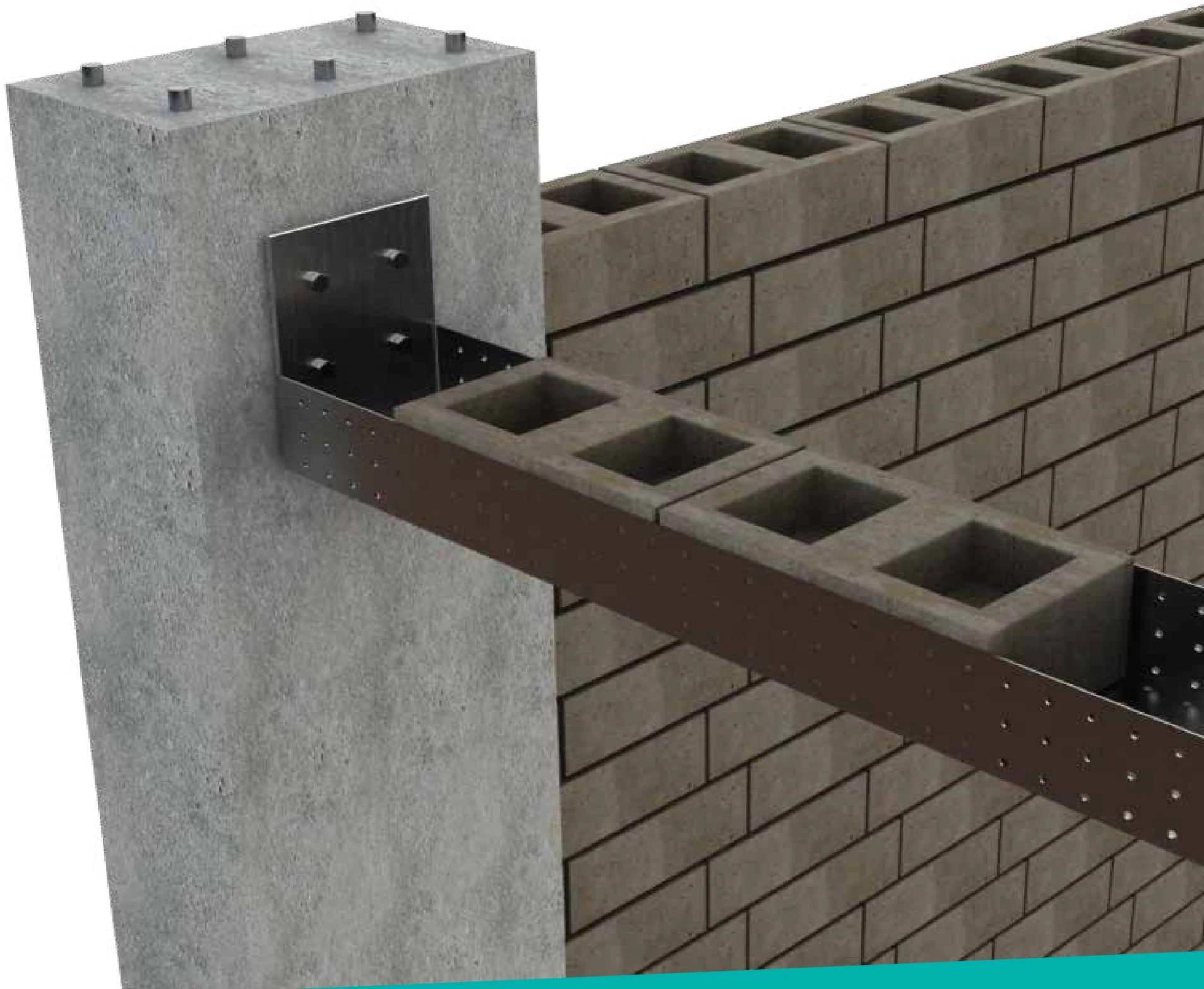

Lintel brackets support FERREX channel lintels where a bearing wall is not available. Each bracket is matched to a lintel size and fixed with four anchors.

ApplicationLintel ends without masonry bearing.

Specifications

Lintel Brackets specifications
Reference	Size (mm)	Thickness (mm)	Lintel	Anchors
FLB100	100 × 150 × 150	4/5/6	FCI 100	4 × M8 × 80
FLB150	150 × 150 × 150	4/5/6	FCI 150	4 × M8 × 80
FLB200	200 × 200 × 150	4/5/6	FCI 200	4 × M10 × 80
FLB250	250 × 200 × 150	4/5/6	FCI 250	4 × M10 × 80

Source: Expanded Mesh & Metal Products catalogue, page 27 (PDF, opens in a new tab), Expanded Mesh & Metal Products catalogue, page 24 (PDF, opens in a new tab)

Installation

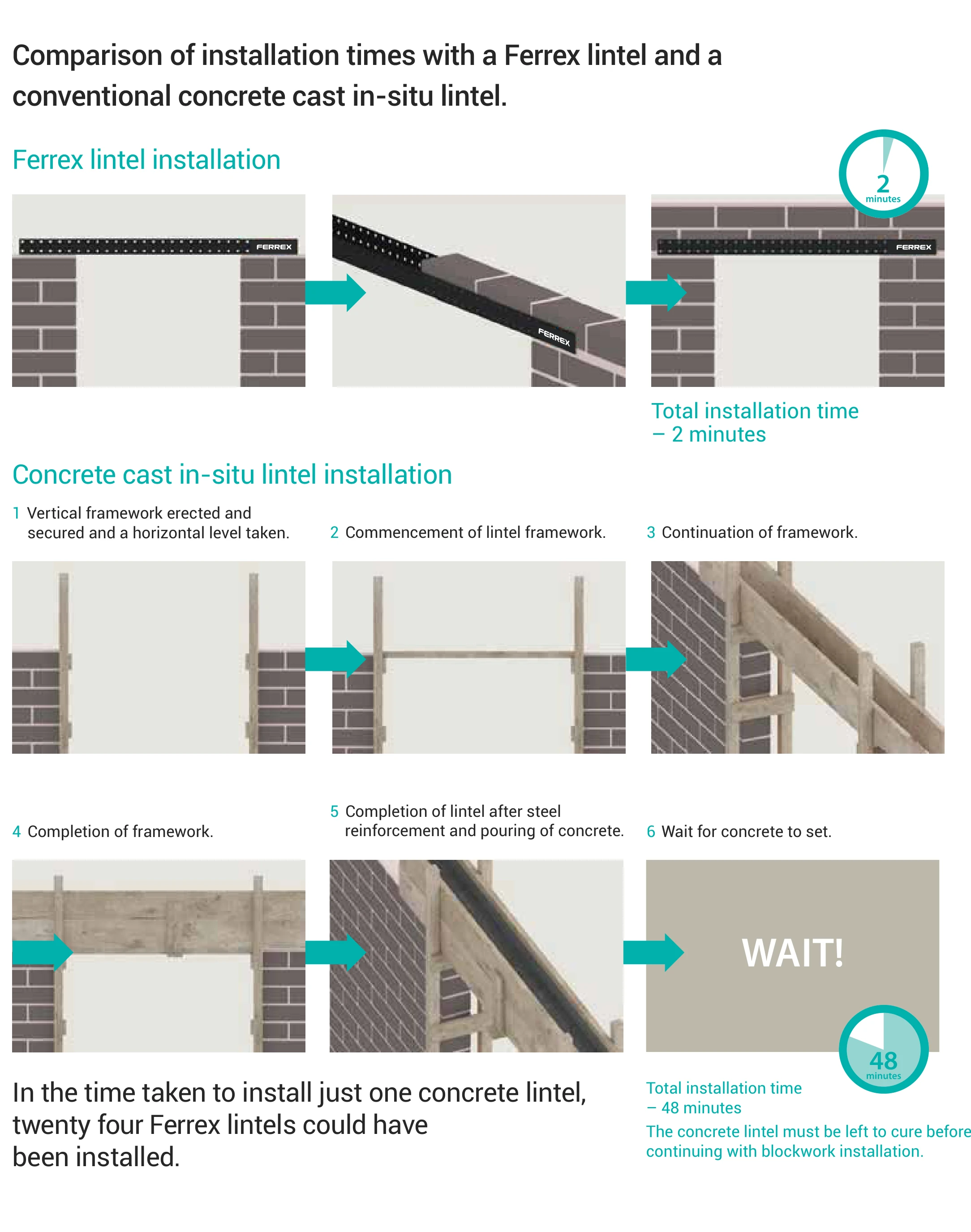

Installing steel lintels

Support each end on a solid base with a minimum end bearing of 200mm. Use lintel brackets where no bearing wall is available.
Use lintels cut to length at the factory. Do not use damaged or welded lintels.
Keep within the listed safe working load for the lintel length.
Prop at the centre until the mortar is dry to avoid excessive deflection.
